Panasonic Z612E9K10HP T170 Base Microwave Lamp / Bulb 25W 240V / 4.7mm Spades

High quality brand new oven lamp for Panasonic microwave ovens and other heavy duty uses. Lamp has a base with a right angled mounting lug for mounting onto the oven chassis. The lamp is rated at 25W 240V AC

This lamp is used in many Panasonic microwave ovens though it can be used as a replacement where your old lamp has 2 x vertical 4.7mm spade connectors fitted.

This type of bulb is specially designed for use in microwave ovens and other heavy duty applications. Specification is as follows:

• Rating 25W, 220V -  240V AC
• Reinforced construction and vibration proof rating
• Long duration lifetime - 2000 hours
• 2 built in safety fuses
• Complies with international standards (IEC) and with BS5791 for safety


This lamp is supplied as a Panasonic original spare part.

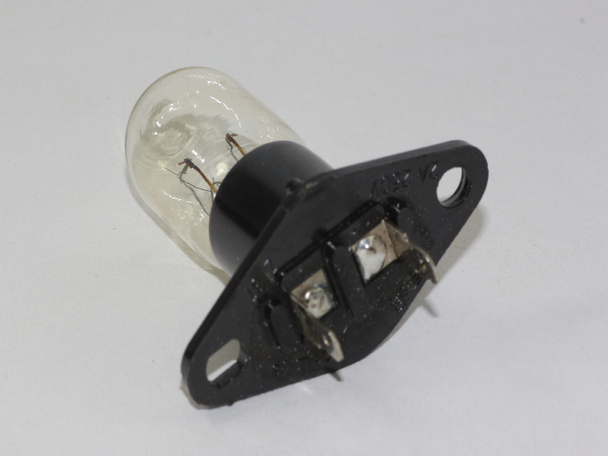

This lamp is mainly fitted to Panasonic microwave ovens though it is used by other manufacturers. Look at the base configuration in the photograph to see if it matches your lamp.

The dimensions of this lamp are as follows:

• Lamp height 68mm measured from the tip of the glass to the end of the connectors
• Glass bulb diameter 23mm
• Base width 33mm
• Mounting Lug length: 10mm

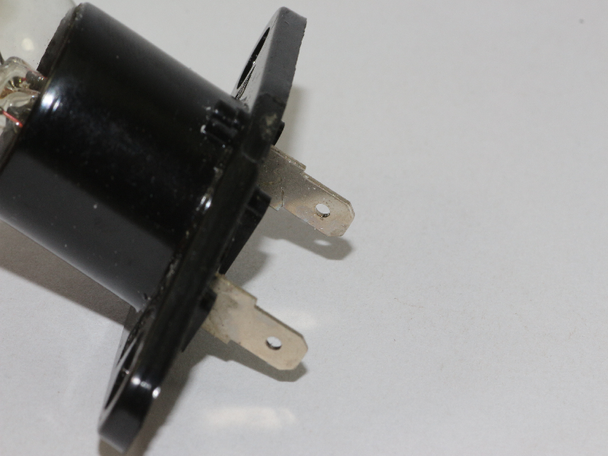

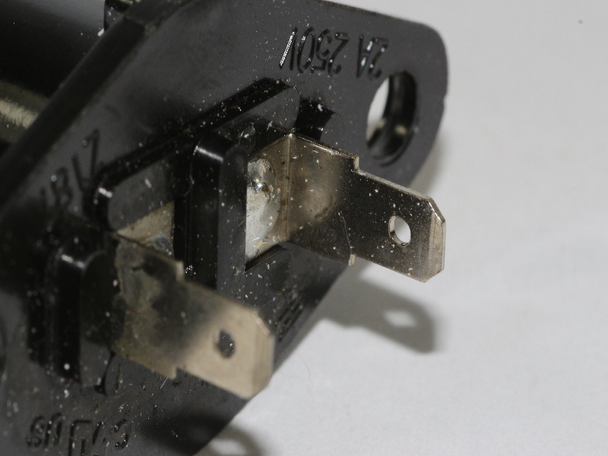

• Terminal size 4.7mm spade type
• Terminal spacing 11.0mm
• Manufacturers Part Number: Z612E9K10HP


To fit this lamp it is necessary to remove the outer casing so replacement should only be attempted by those who have experience in the repair of electrical appliances.

Have a look here for the Panasonic model compatibility list.

Model compatibility list for the Z612E9K10HP:

NN-DF383BEPG, NN-DF383BGPG, NN-DF383BWPG, NN-DF385MEPG, NN-DF386BBPQ
