2SB817 PNP Planar Power Transistor

(No reviews yet) Write a Review
SKU:
2SB817
UPC:
5060239762730
MPN:
2SB817
Condition:
New
Availability:
Available Now With Free UK Shipping
Weight:
5.00 Grams
Width:
16.00 (cm)
Height:
18.00 (cm)
Depth:
5.00 (cm)
Shipping:
Calculated at Checkout
  • 2SB817 PNP Planar Power Transistor
  • 2SB817 PNP Planar Power Transistor
  • 2SB817 PNP Planar Power Transistor
  • 2SB817 PNP Planar Power Transistor
  • 2SB817 PNP Planar Power Transistor
  • 2SB817 PNP Planar Power Transistor
  • 2SB817 PNP Planar Power Transistor
  • 2SB817 PNP Planar Power Transistor
  • 2SB817 PNP Planar Power Transistor
Price: £1.99

Description

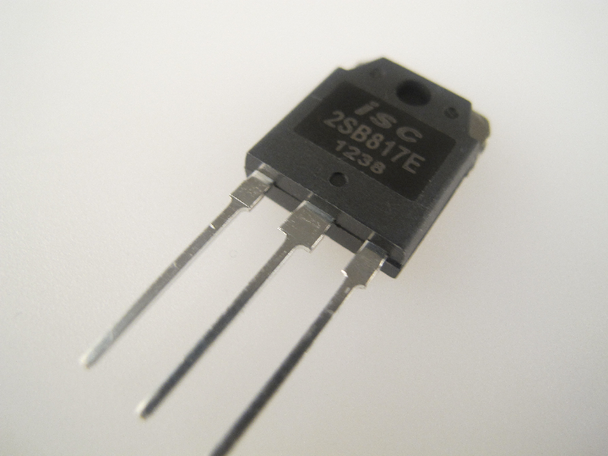

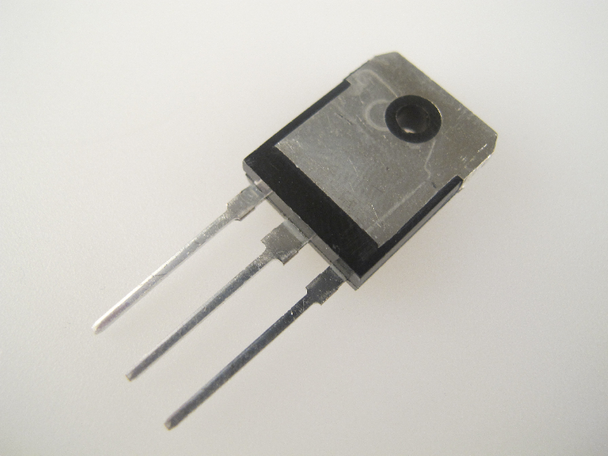

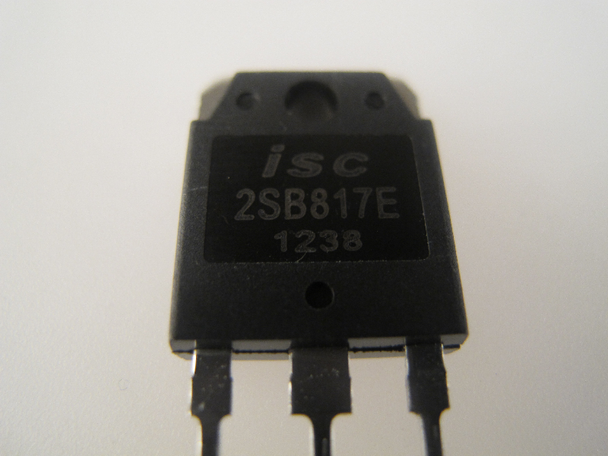

2SB817 PNP silicon planar transistor. This transistor is a power transistor commonly used in many models of audio amplifier output stages. It is commonly found in Rotel
models but can be used in most domestic audio amplifiers as the PNP output device. This transistor the 2SB817 normally compliments the 2SD1047 NPN device.

The transistor rating is as follows:

  • Collector-Emitter Voltage, Vceo: 140V
  • Collector-Base Voltage, Vcbo: 160V
  • Emitter-Base Voltage, Vebo: 6.0V
  • Collector Current Continuous/Peak, Ic/Icm: 12A/15A
  • Power Dissipation @ 25 Centigrade: 100W
  • Operating Temperature Range: -55 to 150 Centigrade
View AllClose

Warranty Information

1 Year
View AllClose

Additional Information

Product Information:
PNP Silicon Planar Transistor
Product Information:
Type supplied: 2SB817
Product Information:
Compliments The: 2SD1047
Product Information:
Used In many Power Amplifier Output Stages
Product Information:
Transistor Rating: 12A, 140V, 100W PNP
