Sanyo

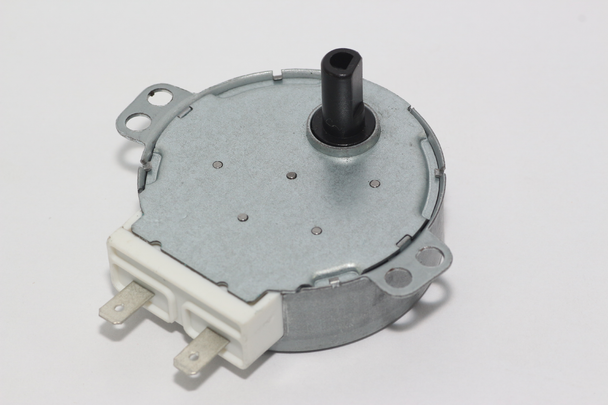

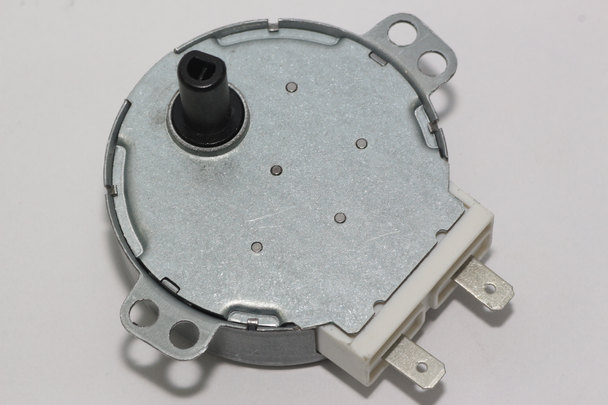

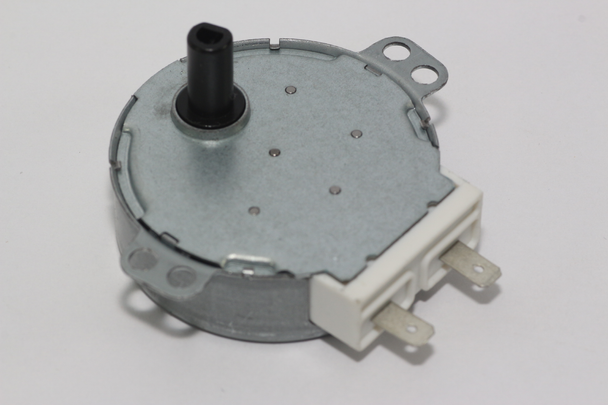

Sanyo Galanz SM-16T 30V AC Microwave Turntable Motor For EM-G9539, GAL07C15001R

(No reviews yet) Write a Review
SKU:
GASVE43C15001R
UPC:
5060537683416
MPN:
GASVE43C15001
Condition:
New
Availability:
Available Now With Free UK Shipping
Weight:
81.00 Grams
Width:
6.50 (cm)
Height:
3.30 (cm)
Depth:
6.20 (cm)
Shipping:
Calculated at Checkout
  • Sanyo Galanz SM-16T 30V AC Microwave Turntable Motor For EM-G9539, GAL07C15001R
  • Sanyo Galanz SM-16T 30V AC Microwave Turntable Motor For EM-G9539, GAL07C15001R
  • Sanyo Galanz SM-16T 30V AC Microwave Turntable Motor For EM-G9539, GAL07C15001R
  • Sanyo Galanz SM-16T 30V AC Microwave Turntable Motor For EM-G9539, GAL07C15001R
  • Sanyo Galanz SM-16T 30V AC Microwave Turntable Motor For EM-G9539, GAL07C15001R
  • Sanyo Galanz SM-16T 30V AC Microwave Turntable Motor For EM-G9539, GAL07C15001R
  • Sanyo Galanz SM-16T 30V AC Microwave Turntable Motor For EM-G9539, GAL07C15001R
  • Sanyo Galanz SM-16T 30V AC Microwave Turntable Motor For EM-G9539, GAL07C15001R
  • Sanyo Galanz SM-16T 30V AC Microwave Turntable Motor For EM-G9539, GAL07C15001R
  • Sanyo Galanz SM-16T 30V AC Microwave Turntable Motor For EM-G9539, GAL07C15001R
  • Sanyo Galanz SM-16T 30V AC Microwave Turntable Motor For EM-G9539, GAL07C15001R
  • Sanyo Galanz SM-16T 30V AC Microwave Turntable Motor For EM-G9539, GAL07C15001R
Price: £9.99

Out of stock

Description

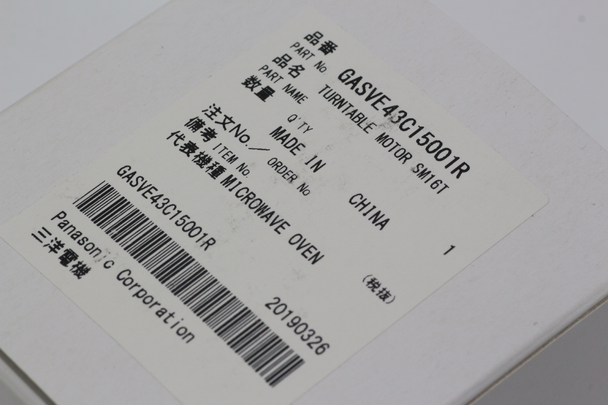

Sanyo genuine microwave turntable motor, part number: GASVE43C15001R.

The motor is fitted to the Sanyo model EM-G9539.

The motor is a Galanz manufactured SM-16T type with a black shaft. The motor is used in many other brands of ovens that use Galanz components.

This Galanz motor replaces the following Galanz part numbers: GAL07C15001R, GASVE43C15001R, GASUA08C15001R.

This particular motor is a 30V AC synchronous motor specially designed for use in a microwave. This particular type of motor can be used in many brands of ovens not just Sanyo models.

The motor may look very similar to what is fitted to your oven and in general if it looks the same it will probably work although check the operational voltage as this motor is unusual as it operates on 30V AC and not 220/240V AC as most turntable motors do.

Failure of the turntable motor is quite common as a liquId spillage from the cavity can make its way into the motor and cause corrosion internally. If your turntable is not rotating then food can be unevenly cooked. LiquId ingression into the turntable motor can also cause a complete failure of your oven due to the RCD being tripped in your consumer unit each time the cooking cycle starts. If this is happening then remove the connections to the motor and insulate them and then start the cooking cycle again. If the circuit breaker does not trip then you need to replace the turntable motor. This happens as liquId insIde the motor can cause an excessive earth leakage current.

On most models there is an access plate underneath the oven to replace the motor. In the factory the access cover is not broken as the cavity is inserted to the lower casing unit with the motor attached. To remove the motor you need to cut away a few pieces of the metal plate and when refitting it turn it 180 degrees and secure with a screw. You can use any self tapper or a spare screw from the outer casing. Some models however do have a screw on the access cover in which case you do not need to cut anything.

When decIding if this motor will fit pay attention to the shaft length. If it's too big or small you may have a problem. The shaft on the new motor is nylon so it can be easily cut to size or filed to size.

Let's look at the motor specification:

  • Sanyo part number: GASVE43C15001R
  • Rated voltage: 30V AC 50/60 Hz
  • Terminal size: 2 x 4.7mm spade terminals
  • Rotation speed: 5/6 RPM clockwise and counter clockwise - it's random

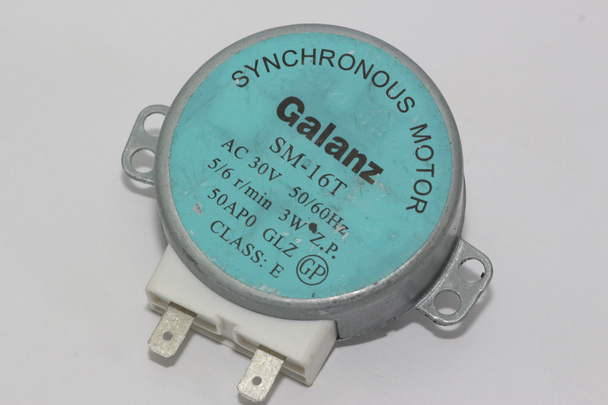

  • Motor part number as shown on the motor: SM-16T
  • Fixing centre distance: 53mm
  • Nylon shaft length: 16mm
  • Shaft diameter: 7mm

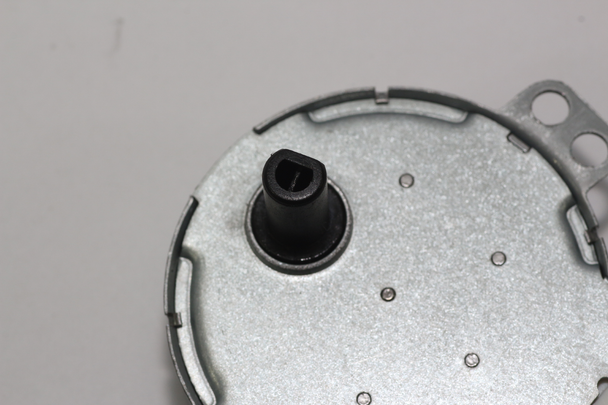

  • Shaft shape: D shaft, flat on one edge to accommodate the turntable coupler
  • Shaft flat edge: 10mm flattened area
View AllClose

Warranty Information

1 Year
View AllClose

Additional Information

Product Information:
Original Sanyo Galanz Turntable Motor Assembly Type SM-16T With Black Shaft
Product Information:
Fits Sanyo Model: EM-G9539VVE2 - 53mm Fixing Centres
Product Information:
Also Fits Many Other Brands of Microwaves Oven That Have Galanz Components Fitted
Product Information:
D Shaft Motor, Shaft Length: 16mm, Shaft Diameter: 7mm, Flat Area of Shaft is 10mm High
Product Information:
Voltage: 30V AC 50/60 Hz, 3W - Terminal Size: 2 x 4.7mm Spade Terminals - Rotational Speed: 5/6 RPM
