Vestel Genuine New TV Power Supply 17IPS01, 17IPS01-2, 17IPS01-15

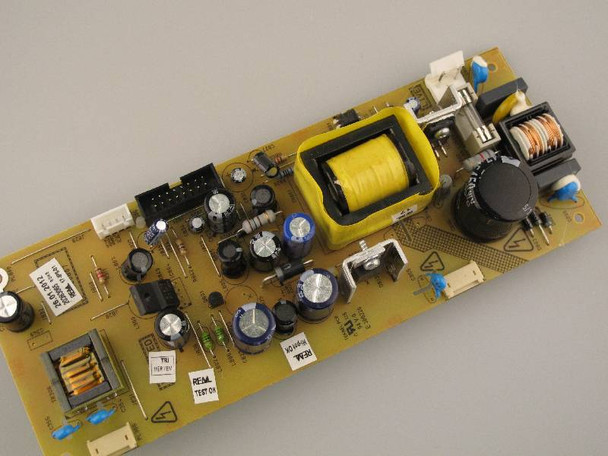

Brand New Original Vestel LCD TV power supply. This 17IPS01 power supply is found in many small screen Vestel models such as types sold by Argos. This board has quite a high failure rate. The common symptoms are a completely dead set due to IC800 becoming short circuit or a picture that appears for a few seconds then disappears. Check the detailed photographs carefully to decide if this board is the type you require. The 17IPS01 version is not important but the layout of the connectors is important. Some similar versions of this board have more inverter connections for the backlights and will not work for you.

The board has 5 connectors as follows:

• PL801 two pin mains input
• PL806 sixteen pin DC out
• PL804/PL805 four pin DC out
• PL306 two pin high voltage out
• PL305 two pin high voltage out

This board is easy to replace. Just remove the screws and the board and fit the new one in place. This board can be found fitted to many small screen LCD/TFT models from Bush, Alba, Acoustic Solutions, Goodmans, Hinari, Misumi, Matsui and many more.
