Panasonic Z612E5G10XN Genuine Microwave Oven Lamp With Base 20W 240V AC

High quality brand new oven lamp for microwave ovens and other heavy duty uses. Lamp has a base type T170 and is rated at 20W 240V

This lamp is used in many Panasonic and is one of the more unusual type of lamps that Panasonic use. This is because the spade terminals that connect the lamp to the wiring loom are different sizes. It has a clip in type base with two straight spade connectors for connection to the wiring loom.

This type of bulb is specially designed for use in microwave ovens and other heavy duty applications. Specification is as follows:

• Rating 20W, 220V -  240V AC
• Reinforced construction and vibration proof rating
• Long duration lifetime - 2000 hours
• 2 built in safety fuses
• Complies with international standards (IEC) and with BS5791 for safety
• T170 base lamp 25W

This lamp is supplied as a Panasonic original spare part.

The Panasonic original part number is Z612E5G10XN which has now been superseded to the Z612E5G50XN, you will be supplied with this part number.

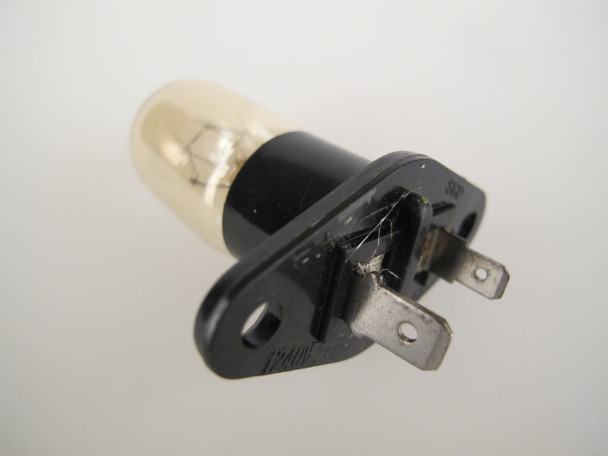

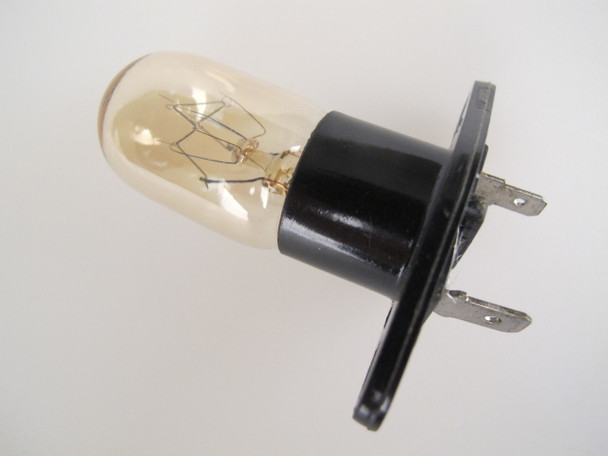

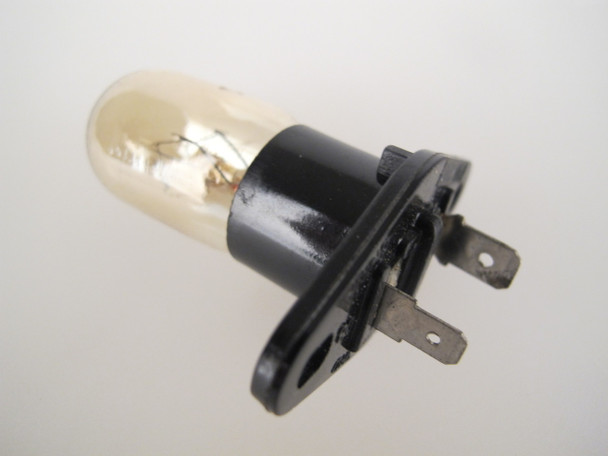

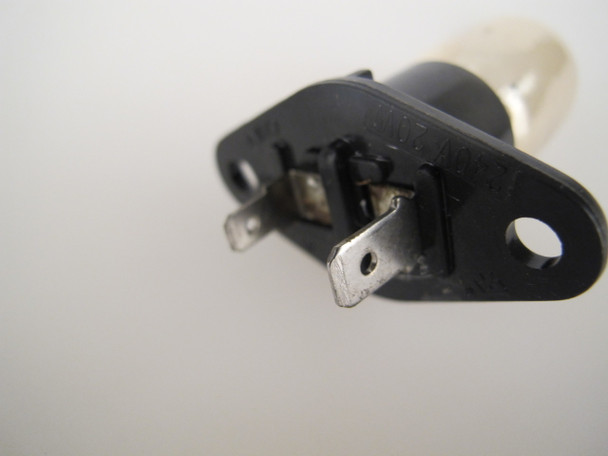

This lamp is mainly fitted to mainly Panasonic microwave ovens though it is used by other manufacturers. Look at the base configuration in the photograph to see if it matches your lamp. If it does not match then look at our other lamps or get in touch for more information. We can supply almost any lamp for any type of microwave.

The dimensions of this lamp are as follows:

• Lamp height 64mm measured from the tip of the glass to the end of the connectors
• Glass bulb diameter 22mm
• Base width 52mm
• Distance between base fixing centres 40mm
• Terminal size 4.8 mm spade and 6.3mm spade
• Terminal spacing 18.0mm

Model compatibility list for the Z612E5G10XN:

NNF623MFEPG, NN-F623MFEPGZ, NN-F623MFWPGZ, NNF653WFEPG, NN-F653WFEPGZ, NNF663WFEPG, NN-F663WFEPGZ, NN-F663WFSPGZ, NN-F663WFWPGZ, NN-GD546WBPQ, NN-GD546WBPQZ, NN-GD556WEPG, NN-GD556WEPGZ, NN-GD556WSPG, NN-GD557WWPG, NN-GD566MBPQ, NN-GD566MBPQZ, NN-GD566MEPG, NN-GD566MEPGZ, NN-GD566MWPG, NNK102WFBPQ, NNK102WFEPG, NN-K103WFBPQZ, NN-K103WFEPGZ, NN-K103WFWPGZ, NNK123MFBPQ, NN-K123MFBPQZ, NN-K123MFEPGZ, NN-K123MFWPGZ, NNK123WFWPG, NNK152WFBPQ, NN-K152WFBPQZ, NNK152WFEPG, NN-K152WFEPGZ, NNK152WFWPG, NN-K152WFWPGZ, NN-K153WFBPQZ, NN-K153WFEPGZ, NN-K153WFWPGZ, NNQ523MFEPG, NN-Q523MFEPGZ, NNQ543WFEPG, NN-Q543WFEPGZ, NNQ553WFEPG, NN-Q553WFEPGZ, NN-SD446WBPQ, NN-SD446WBPQZ, NN-SD456WEPG, NN-SD456WEPGZ, NN-SD466MBPQ, NN-SD466MBPQZ, NN-ST446WBPQ, NN-ST446WBPQZ, NNT523MFBPQ, NN-T523MFBPQZ, NN-T535MFBPQZ, NNT543WFBPQ, NN-T543WFBPQZ, NN-T545WFBPQ, NN-T545WFBPQZ, NNT553WFBPQ, NN-T553WFBPQZ, NNV423MFGPG, NN-V423MFGPGZ, NNV453WFBPQ, NN-V453WFBPQZ, NNV453WFGPG, NN-V453WFGPGZ, NNV623MFBPQ, NN-V623MFBPQZ, NNV623MFGPG, NN-V623MFGPGZ
NNV653CFBPQ, NN-V653CFBPQZ, NNV653CFGPG, NN-V653CFGPGZ, NNV653WFBPQ, NN-V653WFBPQZ, NNV653WFGPG, NN-V653WFGPGZ, NN-CF768MBPQ, NN-CF778SBPQ, NN-CF778SEPG, NN-CF778SWPG, NNF623MFEPG, NNF653WFEPG, NNF663WFEPG, NN-F663WFEPG, NN-GD356WEPG, NN-GD366MEPG, NN-GD376SBPQ, NN-GD376SEPG, NN-GD566MWPGZ, NN-GF668MEPG, NN-GF668MSPG, NNK103WFBPQ, NNK103WFEPG, NNK123MFWPG, NN-K133MFEPGZ, NN-K133MFWPGZ, NNK153WFBPQ, NNK153WFEPG, NNK153WFWPG

To fit this lamp it is necessary to remove the outer casing so replacement should only be attempted by those who have experience in the repair of electrical appliances.
