2SD1047 NPN Planar Power Transistor

(No reviews yet) Write a Review
SKU:
2SD1047
UPC:
5060239762747
MPN:
2SD1047
Condition:
New
Availability:
Available Now With Free UK Shipping
Weight:
5.00 Grams
Width:
16.00 (cm)
Height:
18.00 (cm)
Depth:
5.00 (cm)
Shipping:
Calculated at Checkout
  • 2SD1047 NPN Planar Power Transistor
  • 2SD1047 NPN Planar Power Transistor
  • 2SD1047 NPN Planar Power Transistor
  • 2SD1047 NPN Planar Power Transistor
  • 2SD1047 NPN Planar Power Transistor
  • 2SD1047 NPN Planar Power Transistor
  • 2SD1047 NPN Planar Power Transistor
  • 2SD1047 NPN Planar Power Transistor
  • 2SD1047 NPN Planar Power Transistor
Price: £1.99

Out of stock

Description

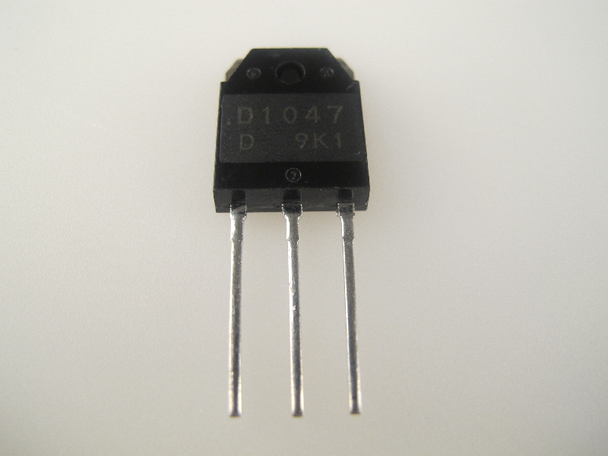

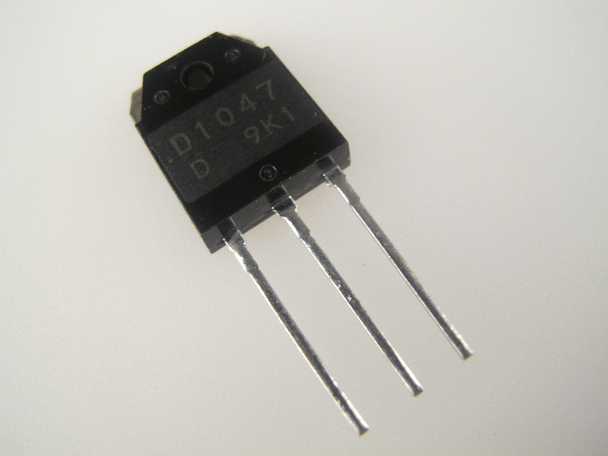

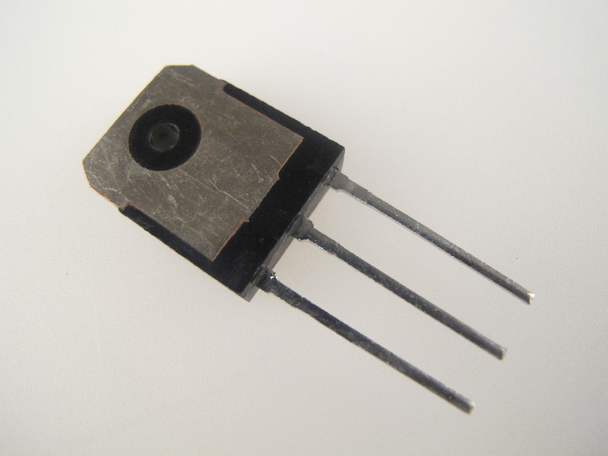

2SD1047 NPN silicon planar transistor. This transistor is a power transistor commonly used in many models of audio amplifier output stages. It is commonly found in Rotel
models but can be used in most domestic audio amplifiers as the NPN output device. This transistor the 2SD1047 normally compliments the 2SB817 PNP device.

The transistor rating is as follows:

  • Collector-Emitter Voltage, Vceo: 140V
  • Collector-Base Voltage, Vcbo: 160V
  • Emitter-Base Voltage, Vebo: 6.0V
  • Collector Current Continuous/Peak, Ic/Icm: 12A/15A
  • Power Dissipation @ 25 Centigrade: 100W
  • Operating Temperature Range: -55 to 150 Centigrade
View AllClose

Warranty Information

1 Year
View AllClose

Additional Information

Product Information:
NPN Silicon Planar Transistor
Product Information:
Type supplied: 2SD1047
Product Information:
Compliments The: 2SB817
Product Information:
Used In many Power Amplifier Output Stages
Product Information:
Transistor Rating: 12A, 140V, 100W NPN
