Gorenje

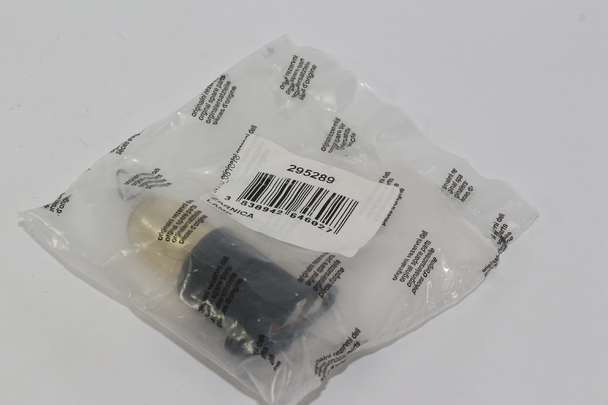

Hotpoint, Whirlpool, Gorenje, C00387489 Microwave Lamp & Holder, T170, 20W 240V
- SKU:
- 295289
- UPC:
- 5060537683249
- MPN:
- 295289
- Condition:
- New
- Availability:
- Available Now With Free UK Shipping
- Weight:
- 24.00 Grams
- Width:
- 2.70 (cm)
- Height:
- 6.50 (cm)
- Depth:
- 5.20 (cm)
- Shipping:
- Calculated at Checkout
Description
Microwave Oven Lamp For Hotpoint, Gorenje, Whirpool and other brands.
The lamp has various part numbers or references and is often referred to as 295289, C00387489 and J00293715.
This high quality genuine new oven lamp for microwave ovens and other heavy duty uses has a base type T170 and is rated at 20W, 240V.
This lamp is used in many different models and can be recognised by the fact that it has two flat 4.7mm width spade terminals for connection to the wiring loom in your microwave oven.
This lamp is a holder and lamp assembly. Most lamps of this style with a black T170 base have a captive light bulb that cannot be removed, this one doesn't.
The pygmy type high temperature lamp can be unscrewed. The lamp has an E14 / 14mm diameter thread and is rated at 20W, 240V AC. The glass bulb is 22mm in diamter and is therefore a T22 type.
The lamp specification is as follows:
- Rating: 20W, 220V - 240V AC
- Base Type: Black T170
- Lamp Height: 64mm (measured from the tip of the glass to the bottom of the base)
- Glass bulb diameter 22mm
- Base Dimensions: 27mm x 52mm
- Fixing Hole Centres: 40mm
- Terminal Size: 2 x 4.7 mm Flat Spades
- Terminal Spacing: 9.5mm
Hotpoint model compatibility list for the 295289:
MWH2031MB0, MWH2031MS0, WH2031MW0, MWH2421MB, MWH2421MS, MWH2422MB, MWH2422MS, MWH2621MB, MWH2622MB, MWHF201B, MWHF201W, MWHF203B, MWHF206B, MWH2011MWO
To fit this lamp it is necessary to remove the outer casing so replacement should only be attempted by those who have experience in the repair of electrical appliances.
Additional Information
Product Information: |
Original Gorenje, Hotpoint, Whirlpool Microwave Lamp & Holder, T170 Base, 240V AC 20W |
Product Information: |
Fits Many Hotpoint, Whirlpool, Gorene Models and More |
Product Information: |
Fits Hotpoint Models: MWH2031, MWH2421, MWH2422, MWH2621, MWF201, MWF203, MWH2011 |
Product Information: |
Lamp Has 2 x Flat 4.7mm Spade Terminals - Spacing is 9.5mm - E14, T22, 20W Lamp Fitted in the Holder |
Product Information: |
Lamp Dimensions, Base: 27mm x 52mm, Lamp Height: 65mm |
