Panasonic L6FAYYYH0079 Home Theatre Cooling Fan For SA-BT230, SABT300, SC-HTX500

Panasonic genuine fan assembly for DVD BluRay home theatre systems.

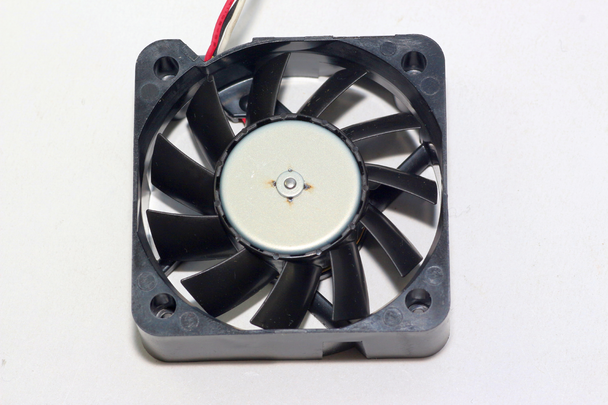

This 12V DC brushless fan unit fits into many Panasonic models. the original part number is L6FAYYYH0079

The motor is a brushless quiet running fan intended to keep the appliance cool insIde whilst keeping noise to a minimum. The fan can be used in other applications where a fan of the same specification is required.

This fan is 50mm square and 15mm deep. The nominal operating voltage is 12V Dc at 0.08A

If you have a Panasonic home theatre system and the fan is noisy then replacement with this part will resolve your issue. Please check the model compatibility list below.

Let's look at the fan specifications:

• Type: Brushless Fan Unit
• Dimensions: 50mm x 50mm 15mm
• Leadout: Red & White 2 Core 4.5cm Length Wire Terminated in a 2 way Molex Plug

• Voltage: 12V DC
• Current: 0.08A / 80mA
• Manufacturer: Panasonic

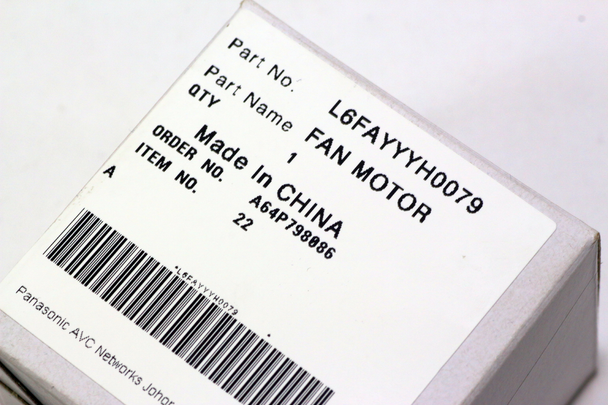

• Part Number: L6FAYYYH0079

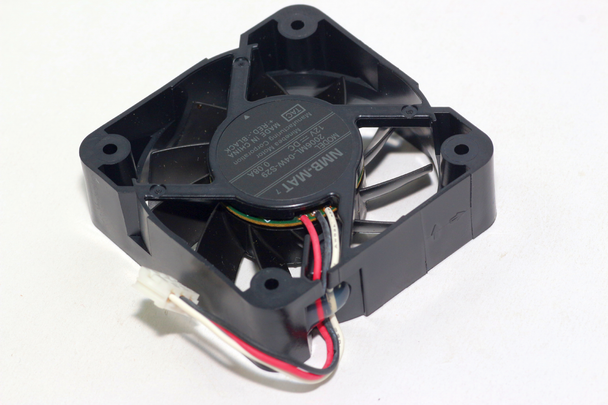

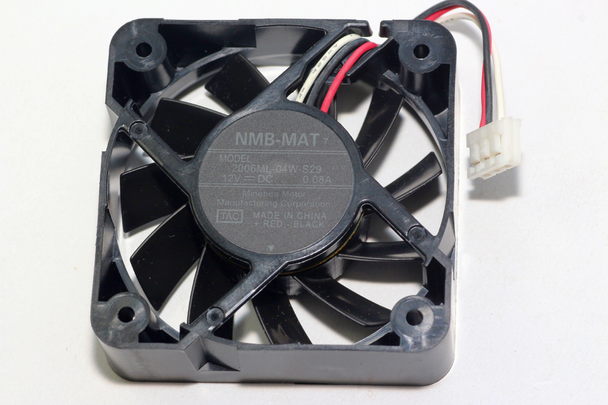

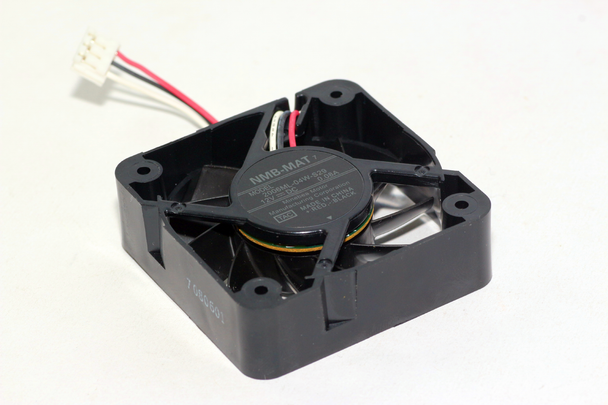

• Markings on Motor: NMB-MAT 7 / 2006ML-04W-S29 / Minebea Motor Manufacturing Company


L6FAYYYH0079 model compatibility list:

SA-BFT800EBK, SA-BFT800EEK, SA-BFT800EGK, SA-BFT800GNK, SA-BT200EB-K, SA-BT200EG-K, SA-BT200GN-K, SA-BT203P-K, SA-BT205EB-K, SA-BT205EE-K, SA-BT205EG-K, SA-BT205EP-K, SA-BT205GA-K, SA-BT205GS-K, SA-BT205GT-K, SA-BT205PU-K, SA-BT207GN-K, SA-BT222EB-K, SA-BT222EG-K, SA-BT228P-K, SA-BT230EB-K, SA-BT230EE-K, SA-BT230EG-K, SA-BT230EP-K, SA-BT230GA-K, SA-BT230GN-K, SA-BT230GS-K, SA-BT230PH-K, SA-BT230PX-K, SA-BT235P-K, SA-BT300PC-K, SA-BT300P-K, SA-BT300PX-K, SA-BT330EB-K, SA-BT330EG-K, SA-BT330EP-K, SA-BT337GN-K, SA-BT730P-K, SA-BT730PX-K, SA-BT735EB-K, SA-BT735EE-K, SA-BT735EG-K, SA-BT735EP-K, SA-BT735GA-K, SA-BT735GS-K, SA-BT735GT-K, SA-BT735PH-K, SA-BT735PR-K, SA-BT737GN-K, SA-BTX75EB-K, SA-BTX75EF-K, SA-BTX75EG-K, SA-BTX77EB-K, SA-BTX77EG-K, SA-HTR210EBK, SA-HTR210E-K, SA-HTR310EBK, SA-HTR310E-K, SA-PT580GJ-K, SA-PT580GT-K, SA-PT580PH-K, SA-PT580PR-K, SA-PT980GA-K, SA-PT980GJ-K, SA-PT980GK-K, SA-PT980GN-K, SA-PT980GS-K, SC-HTR210GMK, SC-HTR210GTK, SC-HTR310P-K, SC-HTX500EBK, SC-HTX500EEK, SC-HTX5EB-K, SC-HTX5EG-K, SG-PAVCJM, SU-HTB15EB-K, SU-HTB15EG-K, SU-HTB15GN-K, SU-HTB15GS-K, SU-HTB15GSXK, SU-HTB15PH-K, SU-HTB15PP-K
