SF-P101N CD Mechanism SFP101N 15 Pin Sanyo Version For CD Player Repairs

(No reviews yet) Write a Review
SKU:
SFP101N15P
UPC:
5060239761948
MPN:
SFP101N15P
Condition:
New
Availability:
Available Now With Free UK Shipping
Weight:
250.00 Grams
Width:
80.00 (cm)
Height:
45.00 (cm)
Depth:
100.00 (cm)
Shipping:
Calculated at Checkout
  • SF-P101N CD Mechanism SFP101N 15 Pin Sanyo Version For CD Player Repairs
  • SF-P101N CD Mechanism SFP101N 15 Pin Sanyo Version For CD Player Repairs
  • SF-P101N CD Mechanism SFP101N 15 Pin Sanyo Version For CD Player Repairs
  • SF-P101N CD Mechanism SFP101N 15 Pin Sanyo Version For CD Player Repairs
  • SF-P101N CD Mechanism SFP101N 15 Pin Sanyo Version For CD Player Repairs
  • SF-P101N CD Mechanism SFP101N 15 Pin Sanyo Version For CD Player Repairs
  • SF-P101N CD Mechanism SFP101N 15 Pin Sanyo Version For CD Player Repairs
  • SF-P101N CD Mechanism SFP101N 15 Pin Sanyo Version For CD Player Repairs
  • SF-P101N CD Mechanism SFP101N 15 Pin Sanyo Version For CD Player Repairs
  • SF-P101N CD Mechanism SFP101N 15 Pin Sanyo Version For CD Player Repairs
  • SF-P101N CD Mechanism SFP101N 15 Pin Sanyo Version For CD Player Repairs
  • SF-P101N CD Mechanism SFP101N 15 Pin Sanyo Version For CD Player Repairs
Price: £11.99

Out of stock

Description

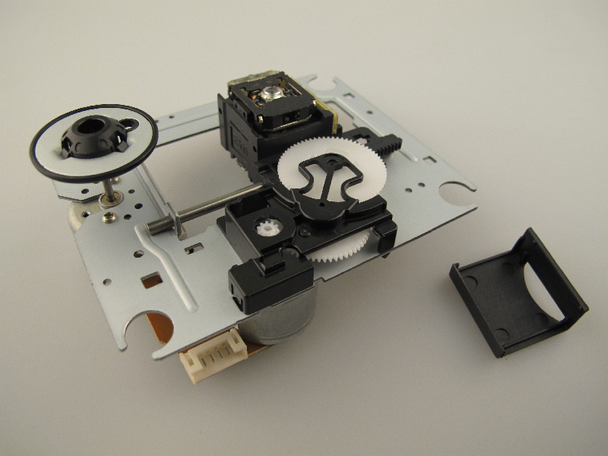

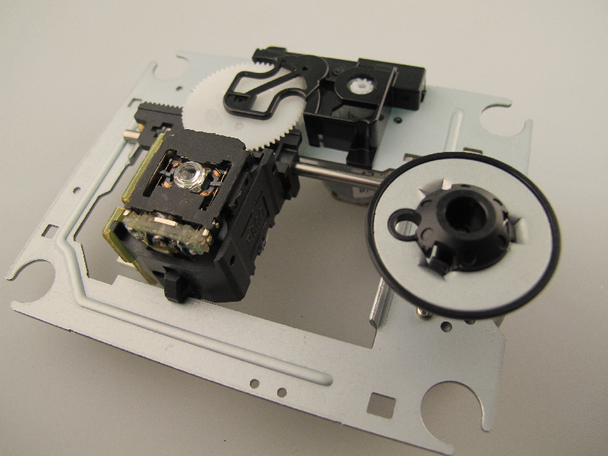

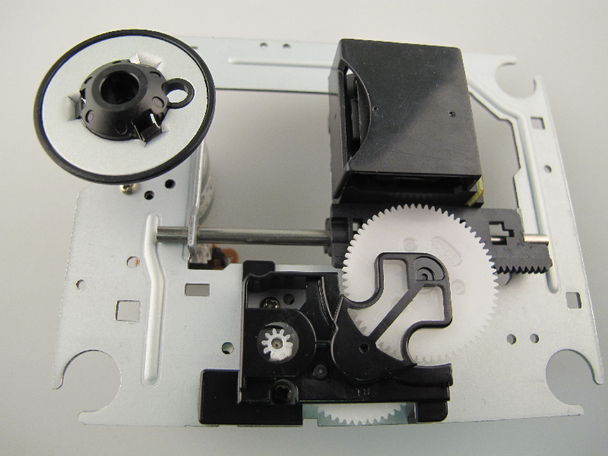

​This is a complete CD mechanism suitable for replacement in many Sanyo, Philips, Pioneer and Alba models. This is a Sanyo part but this mechanism will fit into many other brands of CD players and HiFi's as many manufacturers use the SF-P101N laser.

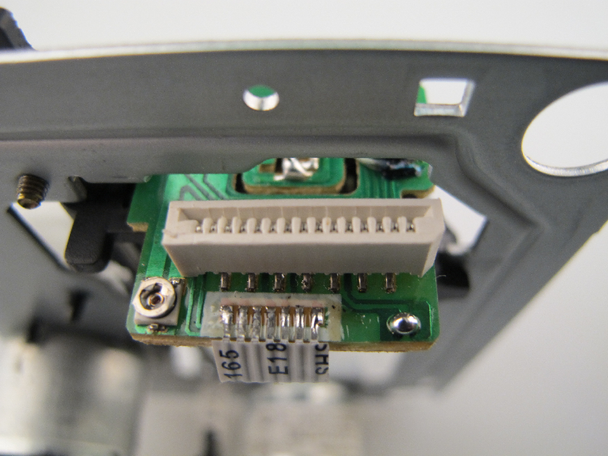

Please note however that there are two versions of the SF-P101N laser. One has 16 pins on the lasers ribbon connector and the other has 15 pins. The 15 pin type is what is supplied here but please note that this is the less commonly used version. It's mainly the 16 pin version that is used. It's easy to determine what type you have, just count the number of pins on the laser connector. There will be either 15 pins or 16 pins. See our shop for the 16 pin version  as this is the most common type. The 16 pin and 15 pin versions are not interchangeable.


The SF-P101N laser as fitted to this mechanism crops up in lots of different brands of CD players and HiFi's. The laser type number is stamped onto the casing of the laser. So if you have an SF-P101N stamped on your faulty laser then this is the mechanism for you. Just count the number of pins on the lasers connector to determine the number of pins presnt, there will be 15 or 16 pins.


If you have a CD player or HiFi with a defective SF-P101N laser then you can replace this entire mechanism, this will provide an extremely effective repair as all the moving parts in the CD reading mechanism get replaced.


This mechanism includes the following:


  • Chassis Base

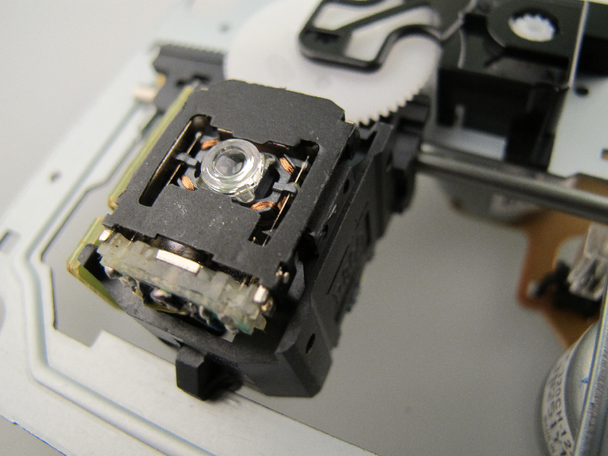

  • SF-P101N  Laser / Optical Pick Assembly / Genuine Sanyo Part

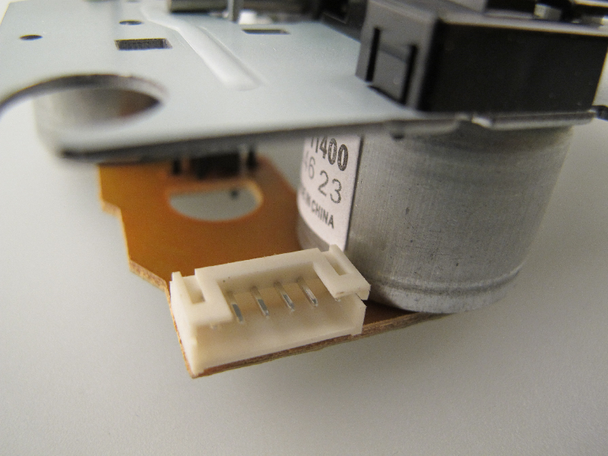

  • Spindle Motor
  • Sled Motor
  • Nylon Driving Gears
  • Slide Rods


If the mechanism in your machine is different though uses an SF-P101N then you can easily remove the laser from this mechanism and fit into your unit.


This item is used in our own workshop for repairs and we are making it available for those who wish to repair their own CD player. Only to be purchased by those competent in the repair of electrical equipment.

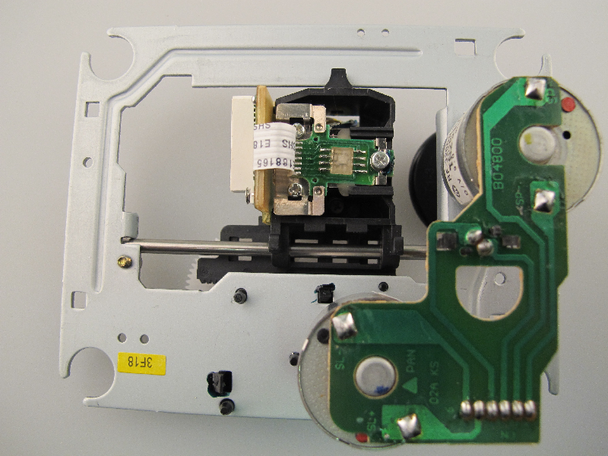

The fitting of this part is generally quite easy. If you are not confident about changing the whole mechanism then it is perfectly acceptable to remove the laser as previously mentioned for fitting into your unit. There is only one important point to note. The laser as supplied new has a solder link in place to protect the it from static electricity damage. You need to remove this small link with a soldering iron or sharp knife. This is shown in the last picture of this listing. It is to the left of the connector on the laser. The laser is also fitted with a protective plastic cover. This simply unclips and is to be discarded after fitting the mechanism in place.

View AllClose

Warranty Information

1 Year
View AllClose

Additional Information

Product Information:
Complete Sanyo CD mechanism SFP101N
Product Information:
This is the 15 pin version of the mechanism
Product Information:
Not compatible with the 16 pin version
Product Information:
Complete CD reading mechanism, motors, gears, laser unit, used in many CD players
Product Information:
Static protection link to be removed before use
