Panasonic
10 x Panasonic 470uF 25V EEUFR1E471L Slim Ultra Low ESR Electrolytic Capacitors
(No reviews yet)
Write a Review
- SKU:
- EEUFR1E471LX10
- UPC:
- 5060239765847
- MPN:
- EEUFR1E471LX10
- Condition:
- New
- Availability:
- Available Now With Free UK Shipping
- Weight:
- 1.00 Grams
- Width:
- 0.80 (cm)
- Height:
- 2.00 (cm)
- Depth:
- 0.80 (cm)
- Shipping:
- Calculated at Checkout
Description

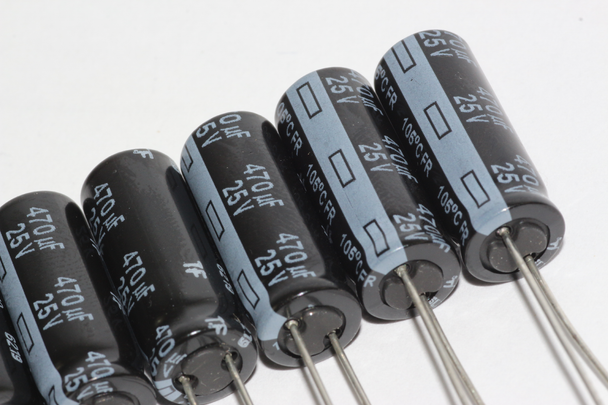

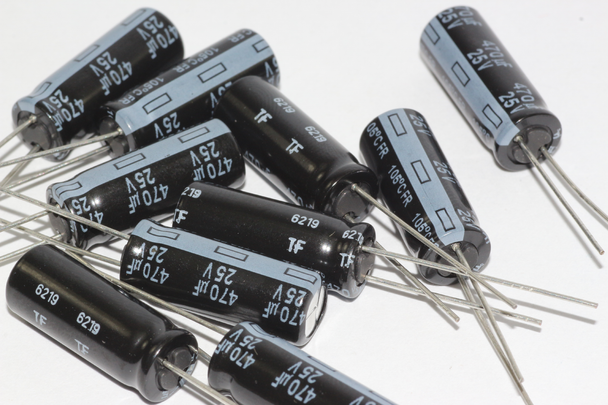

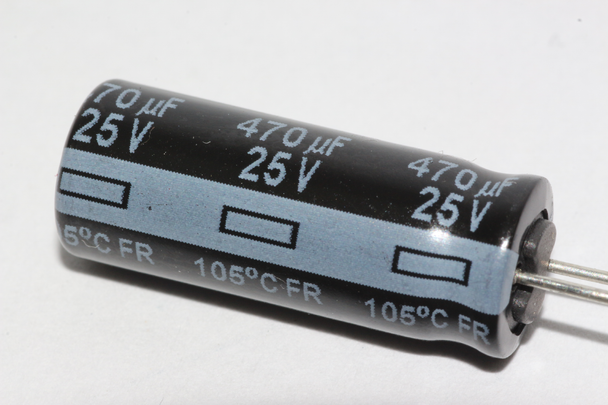

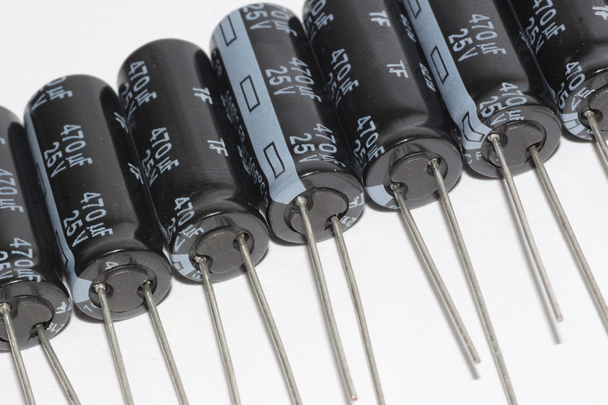

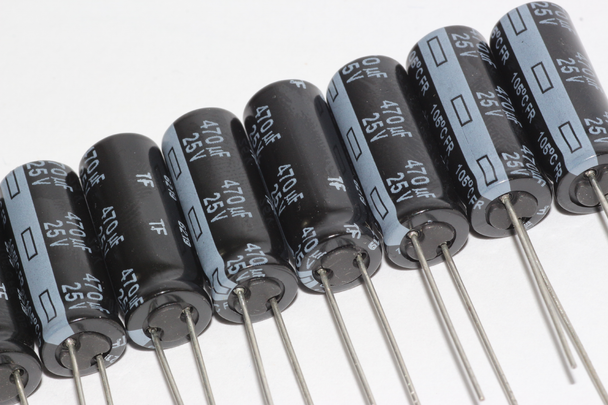

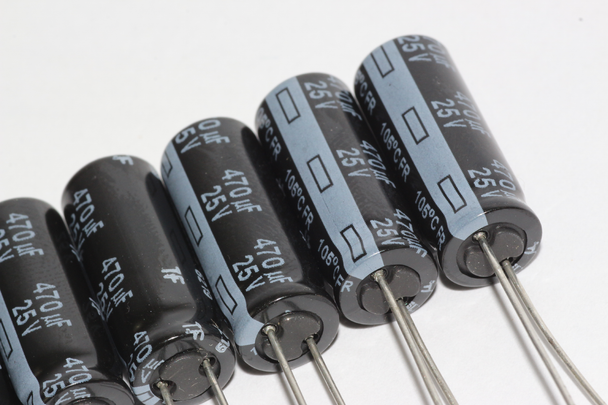

10 x Panasonic Slim 470uF 25V Radial Electrolytic Capacitors.
When carrying out repairs to modern consumer electronic equipment the use of good quality capacitors, like Panasonic, will ensure a long lasting repair. We repair consumer electronic equipment and we always use Panasonic branded electrolytics. They never fail and we never see recalls on the jobs we carry out using them. It's well worth paying a little extra for quality.
The capacitors supplied here are the latest FR range of ultra low 105 degrees ESR capacitors with compact casing from Panasonic, a name to trust.
Fitting Panasonic capacitors will greatly improve reliability of the power supply in a modern television for example.
Let's have a look at the specification of this capacitor:
When replacing capacitors in power supplies for example please remember that values and voltages are not that critical. For example the voltage rating of a capacitor is the maximum voltage allowed. It is therefore acceptable to fit a 25V capacitor in place of a 16V type. It is not acceptable to fit a 16V capacitor where the original was a 25V rated type. Since electrolytic capacitors have a tolerance of typically 20% the value also is not that critical. For example an 820uF type can be replaced with a 1000uF and 330uF can be replaced with a 470uF. The only important consIderation is the physical size.
10 pack of Panasonic slim 470uF 25V alluminum electrolytic capacitors. This particular capacitor is only 8mm in diameter and is suitable for applications where many capacitors are placed close together and where height is less of a consIderation, such as computer mother boards.
The capacitors supplied here are the latest FR range of ultra low 105 degrees ESR capacitors with compact casing from Panasonic, a name to trust.
Most modern equipment such as televisions and satellite receivers use switching power supplies rather than a conventional mains transformer arrangement. Typically the power supply switching frequency can be around 40kHz. The resulting ripple produced on the secondary supplies gives smoothing capacitors rather a hard life.
The impedance of a capacitor at a specific frequency will cause a current flow dependent on the ESR, (equivalent series resistance) of the capacitor. This is the effective resistance of the capacitor and like any resistor heat will be produced as current flows through it. The lower the ESR the less heat that will be generated in the capacitor. It is the heat generated in the capacitor that after time will lead to its demise.
Fitting Panasonic capacitors will greatly improve reliability of the power supply in a modern television for example.
Let's have a look at the specification of this capacitor:
- Value: 470uF Maximum working voltage: 25V DC
- Diameter: 8mm
- Length: 20mm
- Lead spacing: 5mm
- Brand: Panasonic FR series
- Endurance: 9000 hours at 105 degrees centigrade
- Impedance: 0.030 Ohms at 100kHz, 20 degrees centigrade
- ROHS compliant: Yes
- Operating Temperature Range:-40°C to +105°C
- Pack Size: 10 Capacitors Supplied
When replacing capacitors in power supplies for example please remember that values and voltages are not that critical. For example the voltage rating of a capacitor is the maximum voltage allowed. It is therefore acceptable to fit a 25V capacitor in place of a 16V type. It is not acceptable to fit a 16V capacitor where the original was a 25V rated type. Since electrolytic capacitors have a tolerance of typically 20% the value also is not that critical. For example an 820uF type can be replaced with a 1000uF and 330uF can be replaced with a 470uF. The only important consIderation is the physical size.
Additional Information
Product Information: |
10 pack of 470uF 25V Electrolytic Capacitors |
Product Information: |
FR Series Ultra Low ESR type, original manufacturers reference - EEUFR1E471L |
Product Information: |
Ultra slim version, only 8mm diameter, capacitor height is 20mm |
Product Information: |
High Endurance / Lifetime of 9000 Hours - ESR is only 0.030 ohms |
Product Information: |
Compact Case Style Ideal For Repairs Where Limited Space Is Available With No Compromise On Quality |
